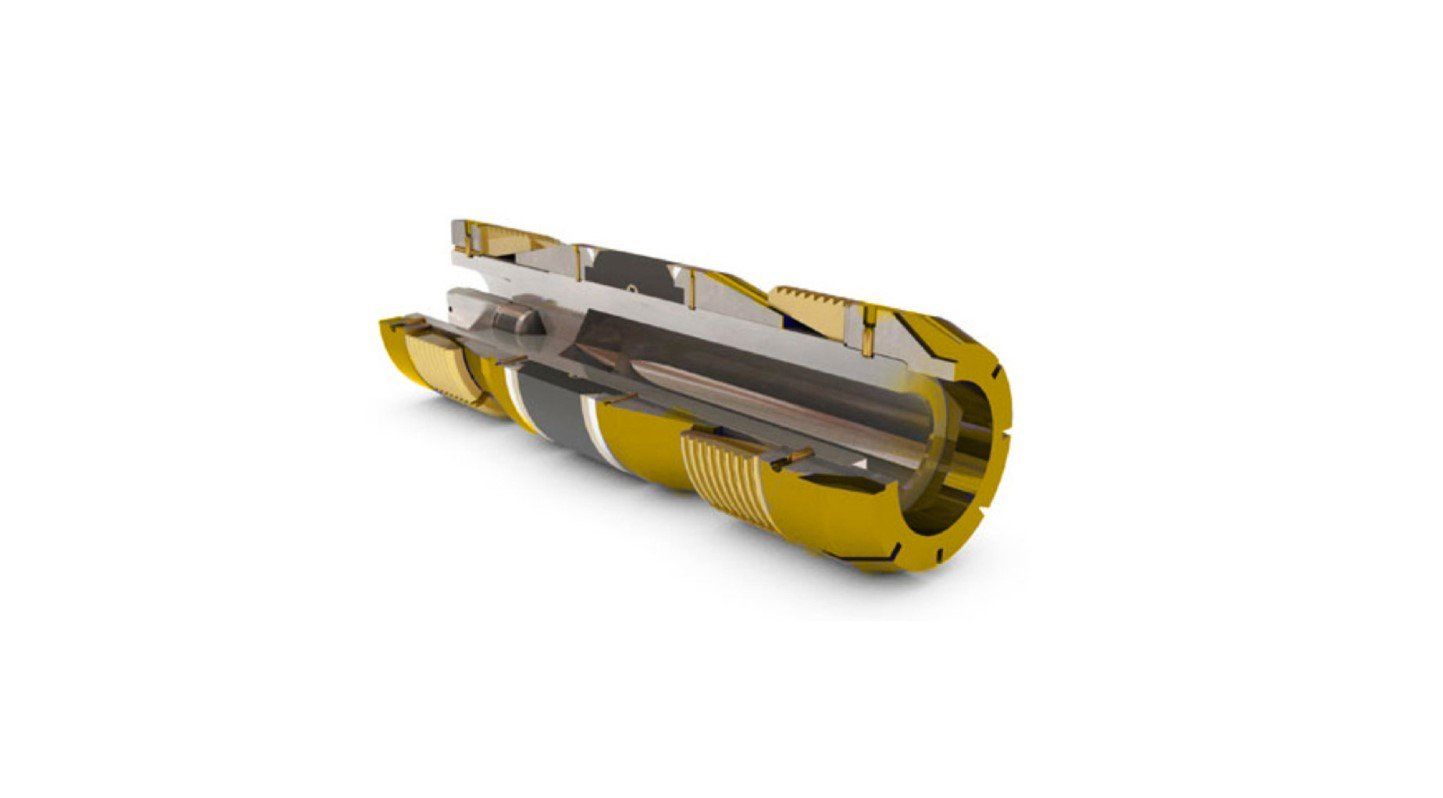

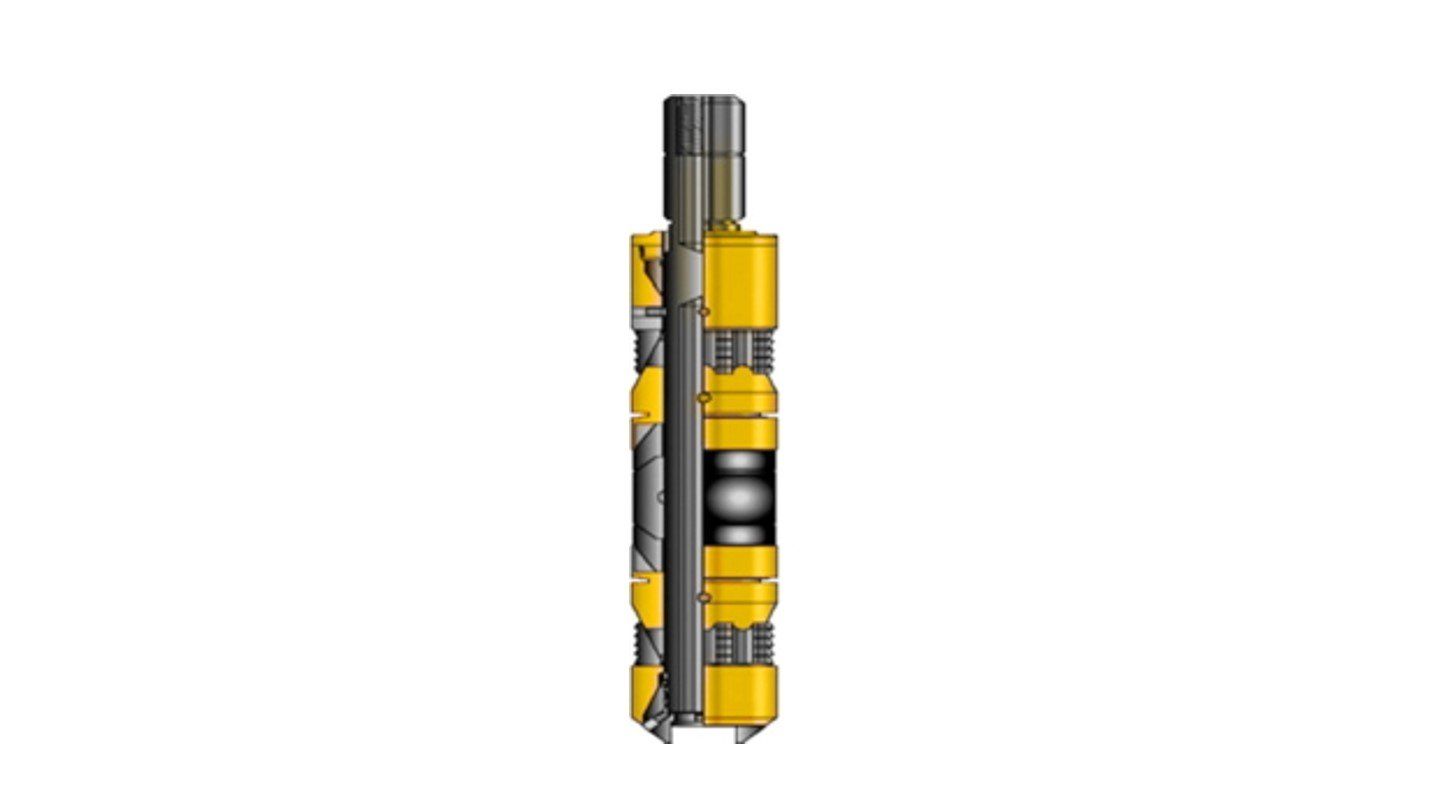

Composite Bridge / Frac Plug
Composite Bridge / Frac Plugs are drillable/ millable tools that aid to isolate more than a few zones in a well. This capability eases to independently treat or test each zone and then remove the plugs, all in one trip.
Description
Applications
- Temporary isolation in multi-stage vertical or
- horizontal completion operations.
- Multiple plugs can be ran to isolate several zones.
- Utilizes retrievable packer style sealing elements.
- Zone isolation during multi-zone hydraulic
- fracturing.
- Drilling can be accomplished utilizing junk mills or tri-cone bits
Available in Different Size
Available in different sizes.

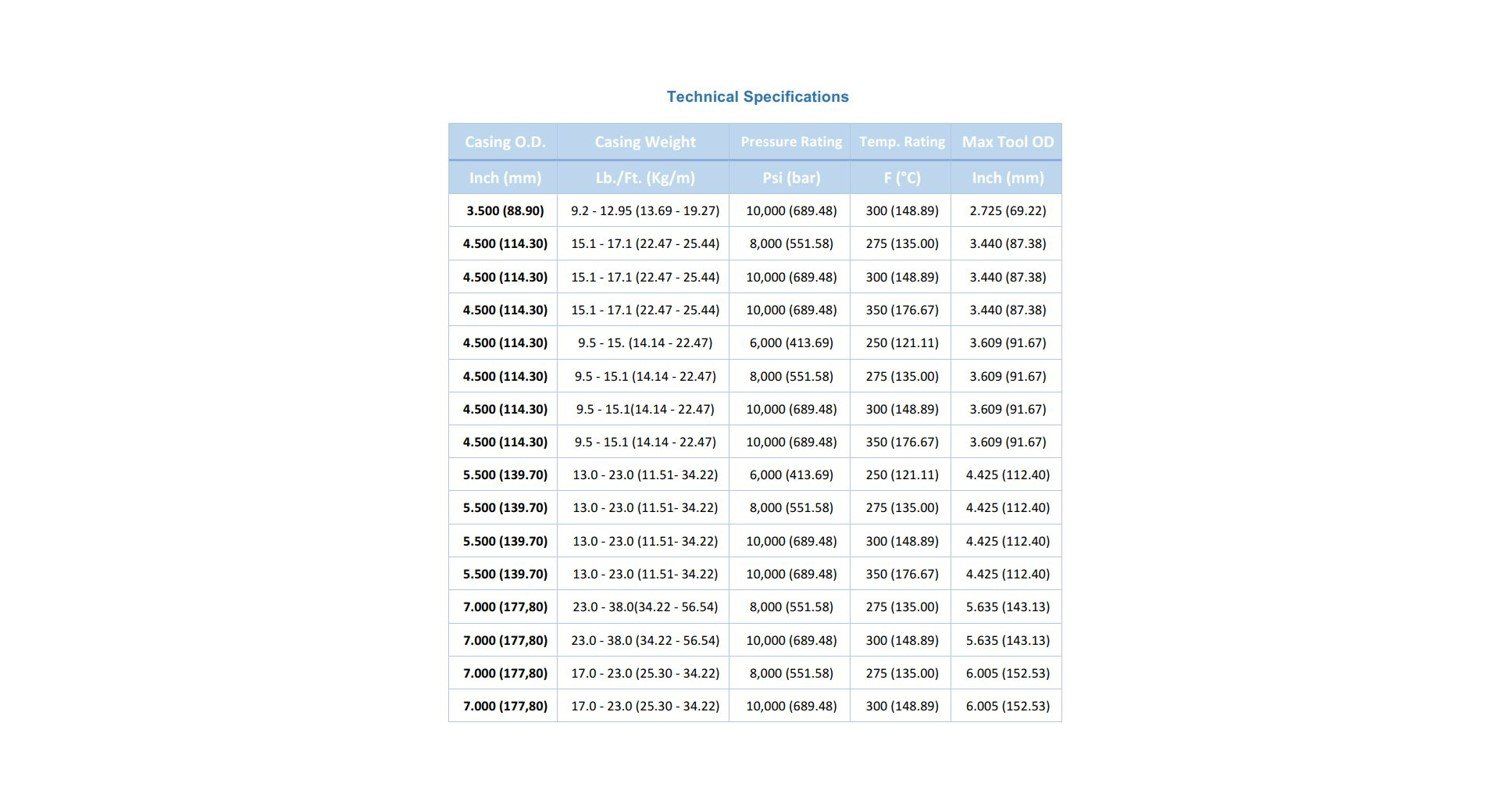

• Available in wide ranges of pressure and temperature ratings.
• Suitable types for diverse operations (such as Hydraulic Fracturing),
are available.
Benefits
- Consistent drilling time would be less than 30 minutes.
- Fast deployment due to lightweight structure.
- Can be deployed and utilized using conventional setting tools.
- Constructed mainly from HP/HT polyamides and composite materials.
- Can be set in company with low viscosity fluid as the circulation fluid.
- Drilling can be accomplished utilizing conventional milling tools.
- Suitable for horizontal applications.
- Can be set with wire-line, coiled tubing or production tubing.
