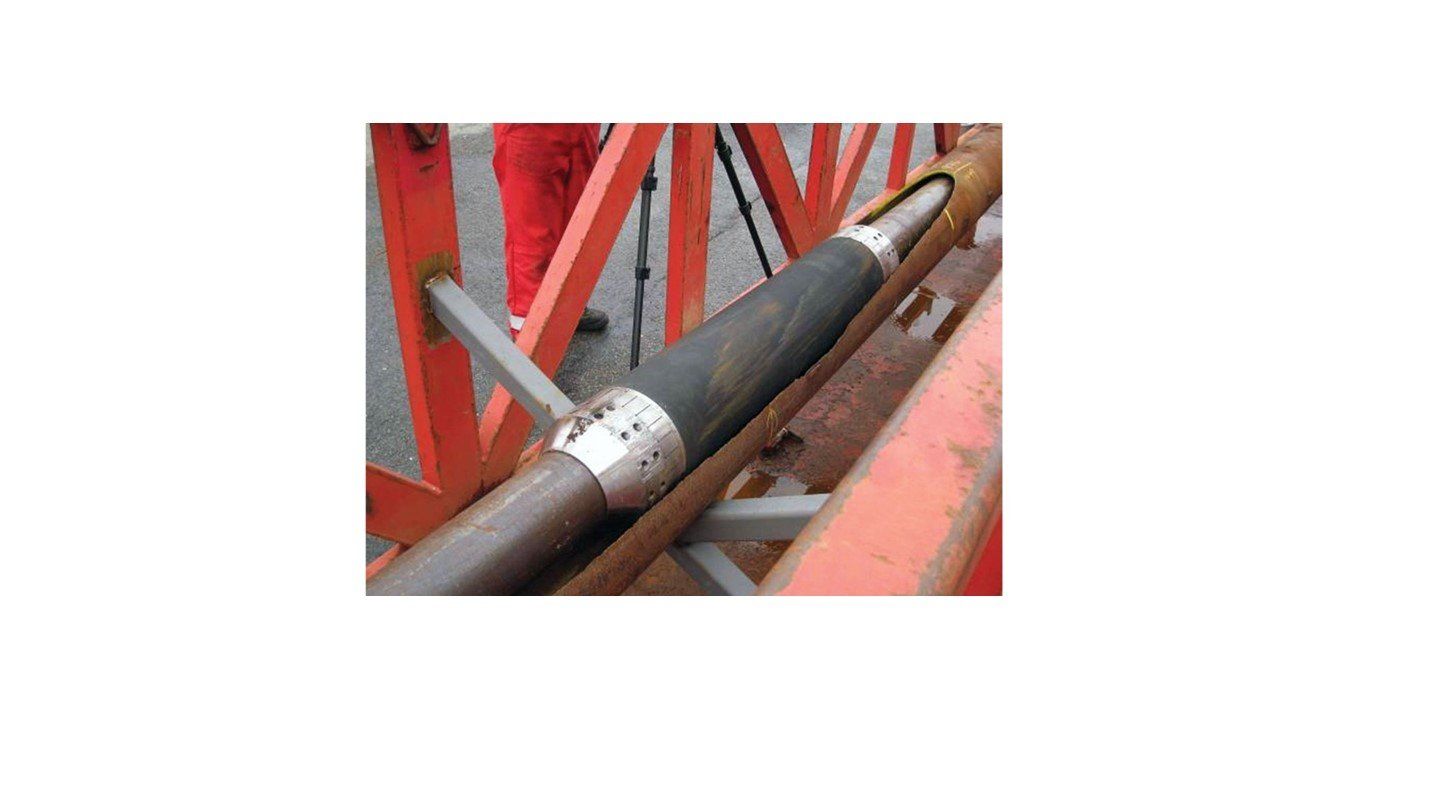

Swellable Packer

Mechanical packers have been used in non-cemented completions to create an annular seal between the open hole and the production casing for many years.

But in some cases such as slotted liners, it is not possible to pressure up and set the packers. This creates an opportunity for introducing Swellable Packers.


Description

Description

The swell packer system can be used either in cased or openhole wells. In some openhole applications, operator may be able to avoid cementing and perforating altogether, reducing the expense associated with these operations. By reducing well construction costs, saving rig time, and isolating producing zones, the Swell packer system attain previously unachievable levels of oilfield performance.

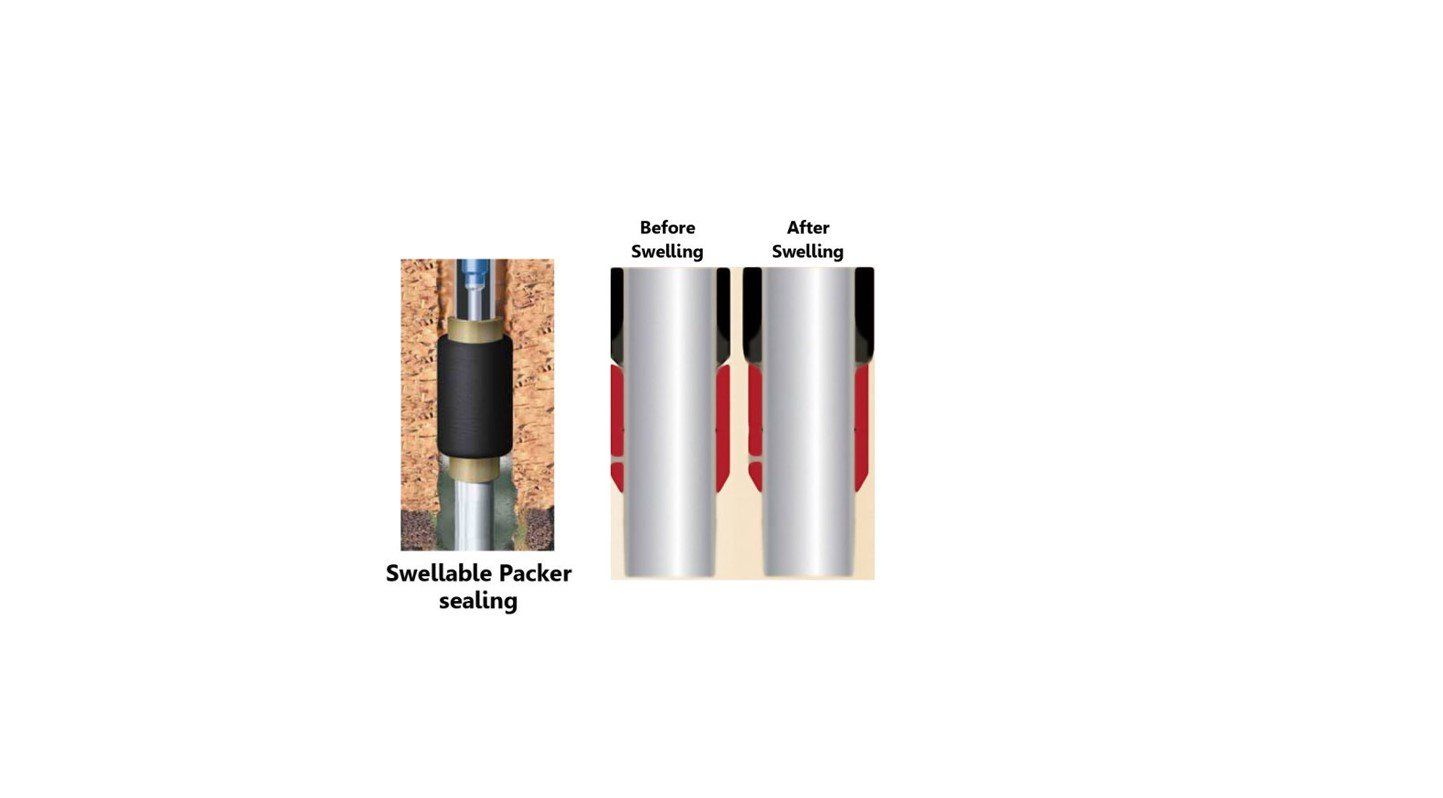

Depending on the characteristic of the natural rubber, it swells when exposed to hydrocarbon / water based fluid, the amount of swell depends on the chemistry of  the fluid and the temperature at which the exposure occurs. Fluid absorption into the swellable elastomer occurs through diffusion. It diffuses into the elastomer through the random thermal motion of the atoms that are in the fluid.


Catalog

Features and Benefits

FEATURES:

  • Can be assembled on any type of tubular.
  • Applicable for cased and open hole completions.
  • Robust assembly.
  • Fixed parts.
  • Self-improving, intervention-less technology.
  • Compatible with any fluid environments.
  • Multiple polymers available to provide oil swelling (OS), water swelling (WS) and hybrid swelling (HS) solutions Engineered swelling delay system.

BENEFITS

  • Simple to install (no expert needed).
  • Preserve casing integrity.
  • Applicable to irregular borehole geometry.
  • Surrogate solution to cementing and perforating.
  • Supplement to resolve well integrity issues.
  • Reduce operational risk.
  • Efficiently isolates producing zones.
  • Significant well costs and rig time reduction

Catalog

Applications

  • Open and cased hole isolations.
  • Stimulation placement.
  • Open and cased hole straddles.
  • SmartWell completion systems.
  • Monitoring and chemical injection.
  • Water control.
  • Multilaterals.
  • Stand-alone screen sand control.
  • Compartmentalization for screen/ICD
  • completions
